RFID Tree Management Solutions

Published byEdith atJune 24,2024

RFID (Radio Frequency Identification) technology has been increasingly utilized in various industries for tracking and managing assets, and it can also be applied to tree management solutions.

What are the applications of RFID nail tags?

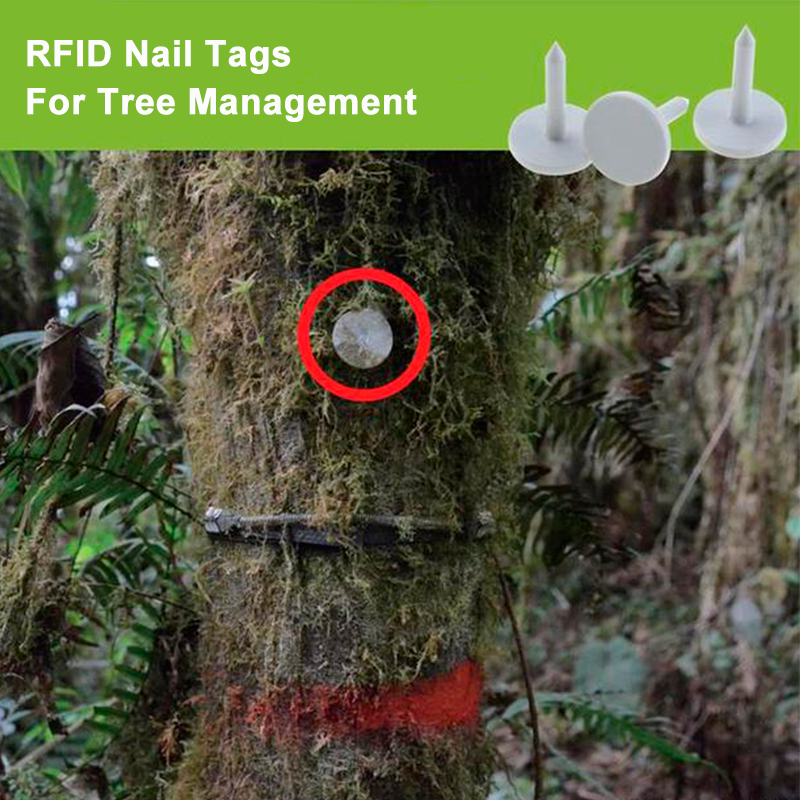

It can be easily embedded into trees or wooden containers to mark a variety of assets. It is suitable for all kinds of non-metallic goods management, security inspection, packaging identification, vehicle identification, park management, tree management and other assets identification management system.

RFID Nail Tag

According to the feedback from the customer regarding the current nail tags, the following issues were raised:

1) The round head and leg interface of the nail tags are prone to breakage when struck with a hammer.

2) The current operation of the nail tags is cumbersome, requiring pre-drilling holes in wood before insertion.

3) The reading distance of the tags is 1 meter, but the customer requires it to be above 2 meters.

Based on the customer's feedback, suitable materials resistant to low temperatures will be chosen to improve the structure of the existing nail tags, ensuring they do not break when hammered. Additionally, the design will be modified to allow for direct insertion into wood without the need for pre-drilled holes. RFID tags with longer reading distances and appropriate structures will be selected to be embedded inside the nails, ultimately meeting the customer's requirements.

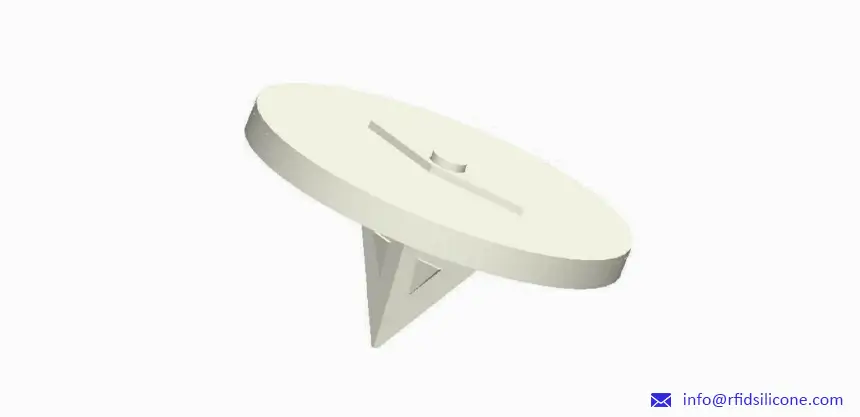

RFIDSilicone UHF RFID Nail Tag

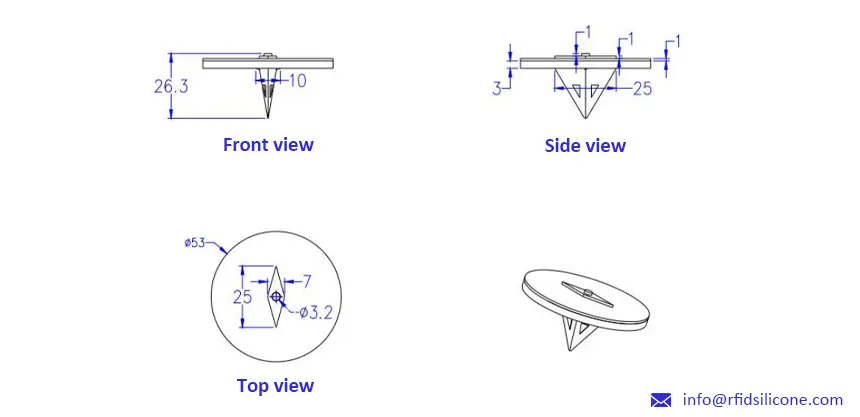

RFIDSilicone UHF RFID Nail Tag Size

UHF Nail Tag Test

Group A/No.1:Low temperature test

(1)Test Equipment:

Name	Model Name	Equipment No.	Due Date

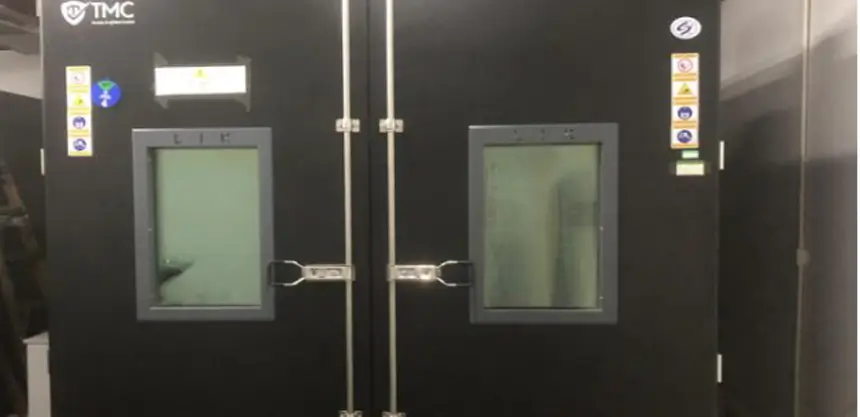

Walk-in constant temperature and humidity test chamber	LKPTH-10L	TMC-RE040	2022-12-29

(2)Test Environment:

Temperature: 18℃~28℃，Humidity/: 45%RH~75%RH

(3)Test Sample:

220104001~002

(4)Test Standard:

Referring to customer requirements

(5)Test profile:

Cool down from room temperature to -35°C and keep it for two hours, then continue to cool down to -40°C and keep it for 4.5 hours.

Cooling rate: 1°C/minute.

(6)Acceptance Criteria:

No request.

(7)Test Result:

Sample No.	Test Result	Conclusion
220104001~002	After the test, the sample has no abnormal phenomena such as deformation or cracking.	Data

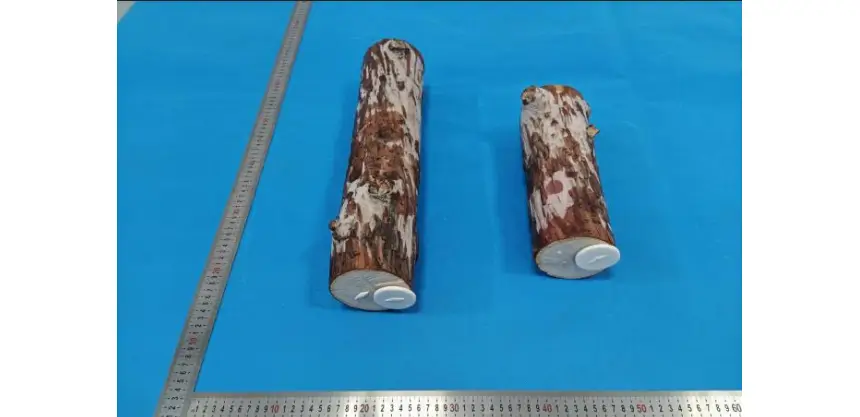

Test Sample:

test samples

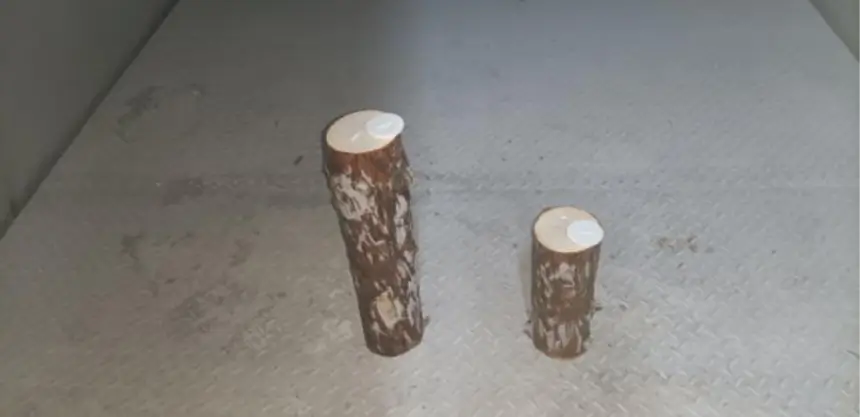

In Testing

In Testing

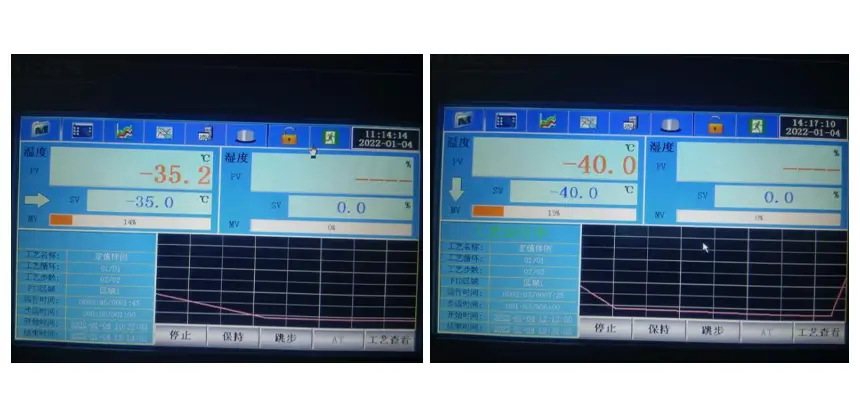

Test Parameters:

Test Parameters:

After Testing:

after testing

Our RFIDSilicone developed UHF nail tags have longer reading range and larger contact area than traditional nail tags. Traditional RFID nail tags are tags that use RFID technology and are usually fixed on the surface of objects or embedded inside objects to track and identify objects. However, traditional nail tags have small contact area and short reading distance, and can generally only read between 30CM and 1M. Batch tree management is still not convenient. Our UHF nail tags quadruple the read range.

Welcome to consult and order if necessary.

-------------------
