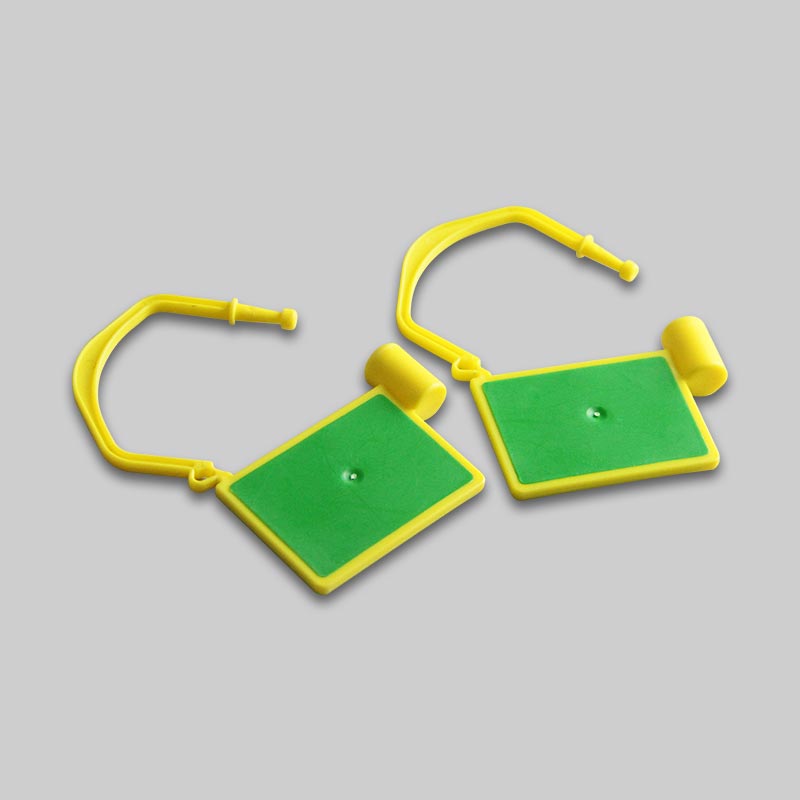

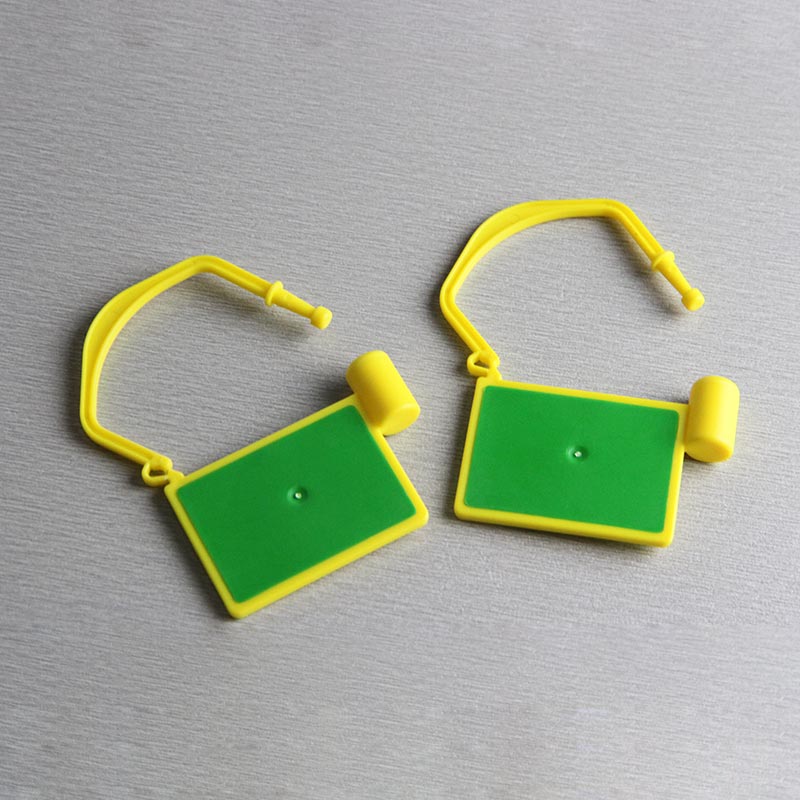

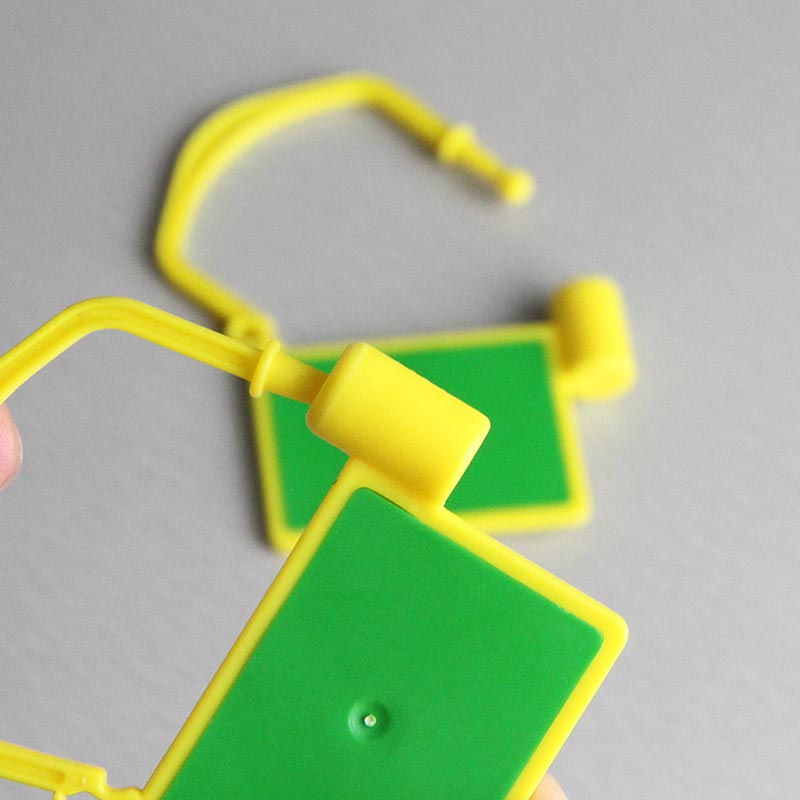

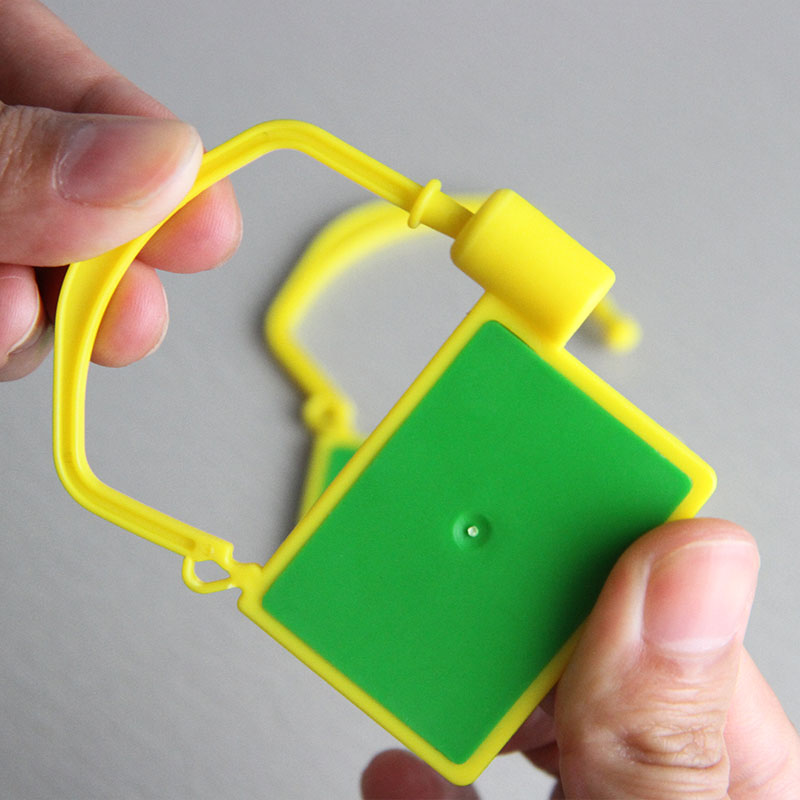

RFID plastic cable ties tags are especially suited for securing, serialisation, tracking and identification of products.
RFID plastic cable ties are made of silicone for indoor and outdoor application environment, which can be encapsulated with LF, HF or UHF antenna. You can choose one to build an automatic tracking system and achieve your project objective.
RFID tag Plastic Cable Ties are especially suited for securing, serialization, tracking & identification, of products in the areas of resource management, electrical inspection, inventory, distribution and rental services as well as for easy management of maintenance and repair routines. RFID cable tie tags are based on standard RFID technology and can be encapsulated with LF 125KHz, HF 13.56MHz or UHF 860-960MHz antenna. We supply different kinds of RFID cable tie tags such as silicone cable tie tags, plastic cable tie tags, PP cable tie tags, etc.
1. Flexible, contactless data communication.
2. Clear identification of objects through unique numbering.
3. Faster data management compared to paper solution.
4. More accurate documentation processes – prevention of human errors.
5. Robust and resistant to harsh environments and cleaning processes.
6. Rewritable.
|
Model |
RS-RST002 |
|
Material |
PP plastic |
|
Size |
Cable 44x32x3mm; Tie rod 48.3x30x3mm |
|
Frequency |
UHF 860-960MHz |
|
Chip |
M4QT(optional) |
|
Read distance |
UHF 0-10M(It depends on reader, tags and environment etc.) |
|
Operating Mode |
Passive |
|
Waterproof grade |
IP67 |
|
Operating temperature |
-20℃~ 85℃ |
|
Working Life |
10 years |
|
Application |
Gas cylinder tracking, Asset management, Baggage tagging & Pipes, cables, shackles and lifting equipment, etc. |
Contact [email protected] now!
Stock Testing samples ready for you.
Perfect solution for variety of applications including service & calibration, logistics, asset tracking and cable management.
|
Product name |
Wholesale RFID Plastic Cable Ties 860-960MHz RFID Tags |
|
Model |
RS-RST002 |
|
Material |
PP plastic |
|
Size |
Cable 44x32x3mm; Tie rod 48.3x30x3mm |
|
Frequency |
UHF 860-960MHz |
|
Chip |
M4QT(optional) |
|
Read distance |
UHF 0-10M(It depends on reader and tag antenna size) |
|
Operating Mode |
Passive |
|
Waterproof grade |
IP67 |
|
Operating temperature |
-20℃~ 85℃ |
|
Working Life |
10 years |
|
Color |
Customized Color |
|
Craft |
Laser printing Codes, QR Code, Bar Code, Punching Hole, Epoxy, Anti-metal, Adhesive Backed, Serial Number, Convex code |
|
Application |
– gas cylinder tracking |
|
MOQ |
500pcs |
|
Sample availability |
Free samples are available upon request. |
|
Common Chip Types |
Protocol |
Capacity |
Anti-collision |
Function |
|
|
Available 125KHz Chip
|
TK4100 |
/ |
64 bit |
No |
Read Only |
|
EM4200 |
/ |
128 bit |
No |
Read Only |
|
|
EM4305 |
/ |
512 bit |
No |
Read/Write |
|
|
T5577 |
/ |
330 bits |
No |
Read/Write |
|
|
Available 13.56MHz Chip
|
NTAG® 213 |
ISO14443A |
180 byte |
No |
Read/Write |
|
NTAG® 215 |
ISO14443A |
540 byte |
No |
Read/Write |
|
|
NTAG® 216 |
ISO14443A |
924 byte |
No |
Read/Write |
|
|
MIFARE® Classic® 1K |
ISO14443A |
1 KB |
No |
Read/Write |
|
|
MIFARE® Classic® 4K |
ISO14443A |
4 KB |
No |
Read/Write |
|
|
MIFARE® Plus® S 1K |
ISO14443A |
2 KB/4 KB |
No |
Read/Write |
|
|
MIFARE Ultralight® EV1 |
ISO14443A |
48 byte |
No |
Read/Write |
|
|
MIFARE Ultralight® C |
ISO14443A |
144 byte |
No |
Read/Write |
|
|
ICODE® SLIX |
ISO15693 |
896 bit |
Yes |
Read/Write |
|
|
Available 860-960MHz Chip |
Alien H3 |
ISO18000-6C |
512 bit |
Yes |
Read/Write |
|
Other chips are also available. |
|||||
