Anti-metal · Industrial-grade PCB tag · Long read range · Durability · Waterproof IP68
RFID anti metal tag is made of FR4 (PCB) material, making it robust and durable, and resistant to damage in environments such as factories. With the Impinj Monza 4QT chip, it can used for factory asset management and IT data center asset tracking.
RFID anti metal tag can be used on factory and data center asset tracking. CXJ RFIDSilicone's RFID PCB tags comply with REACH, RoHS, and CE standards and are available for customization. Please contact us for custom orders.

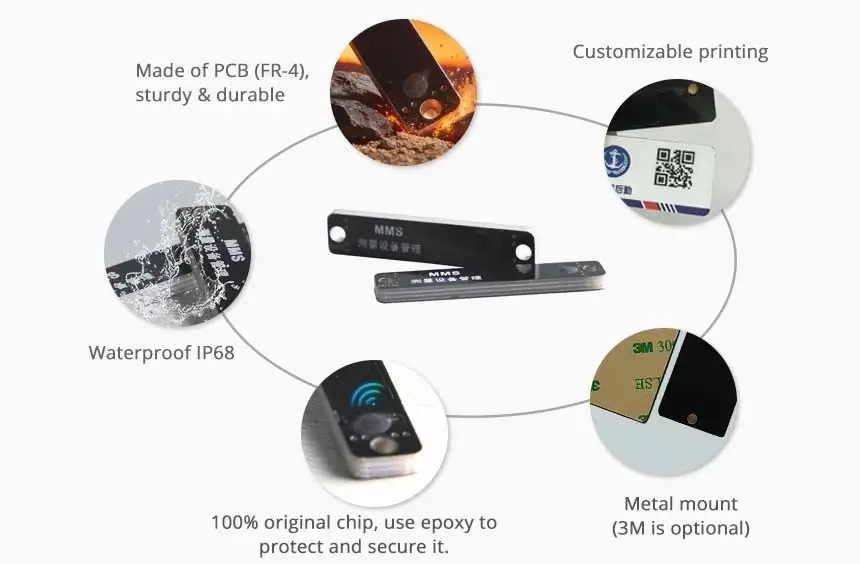

Made of PCB, sturdy and durable.
Waterproof IP68.
Complies with REACH, RoHS, and CE standards.
It can operate at temperatures between -40℃ and 100℃.
Chemical resistant.
Size, color, printing, 3M adhesive backing are optional.
|
Model |
RS-PT5010 |
|
Material |
FR4 (PCB) |
|

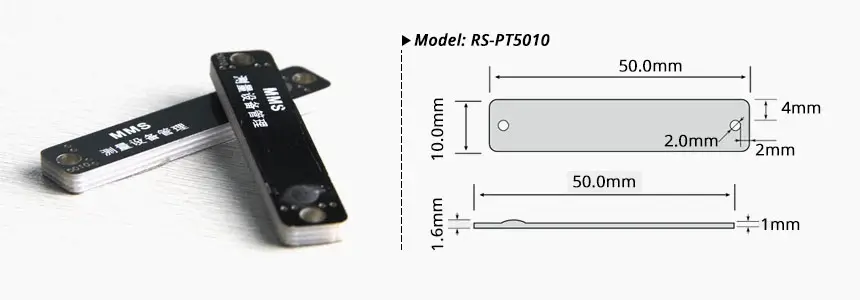

Size |
50x10mm, (Hole: D2mm) |
|
Thickness |
1mm without IC bump, 1.6mm with IC bump |
|
Frequency |
UHF 860~960MHz |
|
Chip |
Impinj Monza 4QT |
|
Reading distance |
Up to 9.5M approx. |
|
Options |
Adhesive Backing, programmable, UID-provided |
|
Application |
Factory Asset Management, IT & Data Center Asset Tracking, etc.. |
|
MOQ |
500pcs |
|
Sample |
Free stock sample available for your testing. |
Contact info@rfidsilicone.com now!
Stock Testing samples ready for you.
Industrial-grade UHF PCB RFID anti-metal tags, built for durability and long-range performance. Request A Quote!
|
Product name |
RFID Anti Metal Tag PCB UHF Tag IP68 Supplier |
|||||
|
Model |
RS-PT5010 |
|||||
|
Material |
FR4 (PCB) |
|||||
|
Size |
50×10×1.6mm |
|||||
|
Color |
Black (Red, Blue, Green, White) |
|||||
|
Frequency |
UHF 860~960MHz |
|||||
|
Operating Mode |
Passive |
|||||
|
Chips |
Impinj Monza 4QT |
|||||
|
Options |
Programmable, UID-provided |
|||||
|
Read distance |
Up to 5.8~9.5m approx. |
|||||
|
Operating temperature |
-40°С to +100°С |
|||||
|
Storage temperature |
-40°С to +150°С |
|||||
|
Mechanical strength |
＞20N |
|||||
|
Installation Method |
Adhesive, Screw |
|||||
|
Application |
Factory Asset Management, IT & Data Center Asset Tracking, etc.. |
|||||
|
Certifications |
Reach Approved, RoHS Approved, CE Approved |
|||||
|
MOQ |
500pcs |
|||||
|
Packaging |
100pcs/bag, 10bags/case, 20 cases/carton |
|||||
|
Common Chip Types |
Protocol |
Capacity |
Anti-collision |
Function |
|
|
Available |
TK4100 |
/ |
64 bit |
No |
Read Only |
|
EM4200 |
/ |
128 bit |
No |
Read Only |
|
|
EM4305 |
/ |
512 bit |
No |
Read/Write |
|
|
T5577 |
/ |
330 bits |
No |
Read/Write |
|
|
Available |
NTAG® 213 |
ISO14443A |
180 byte |
No |
Read/Write |
|
NTAG® 215 |
ISO14443A |
540 byte |
No |
Read/Write |
|
|
NTAG® 216 |
ISO14443A |
924 byte |
No |
Read/Write |
|
|
MIFARE® Classic® 1K |
ISO14443A |
1 KB |
No |
Read/Write |
|
|
MIFARE® Classic® 4K |
ISO14443A |
4 KB |
No |
Read/Write |
|
|
MIFARE® Plus® S 1K |
ISO14443A |
2 KB/4 KB |
No |
Read/Write |
|
|
MIFARE Ultralight® EV1 |
ISO14443A |
48 byte |
No |
Read/Write |
|
|
MIFARE Ultralight® C |
ISO14443A |
144 byte |
No |
Read/Write |
|
|
ICODE® SLIX |
ISO15693 |
896 bit |
Yes |
Read/Write |
|
|
Available |
Alien H3 |
ISO18000-6C |
512 bit |
Yes |
Read/Write |
|
Other chips are also available. |
|||||
