Anti-metal · Industrial-grade PCB tag · Long read range · Durability · Waterproof IP68
This UHF PCB anti-metal tag is made with FR-4 PCB material, making it robust and durable, and capable of operating at high temperatures (-40℃ to 100℃). It is anti-metal, allowing it to be used on metal surfaces for managing metal assets, etc.
The UHF PCB anti-metal tag is a tool that makes warehouse management more efficient and accurate. Customization options include the availability of 3M adhesive backing. CXJ RFIDSilicone offers custom RFID PCB tags in various specifications and colors, , as well as a wide variety of other RFID/NFC wristbands and more.

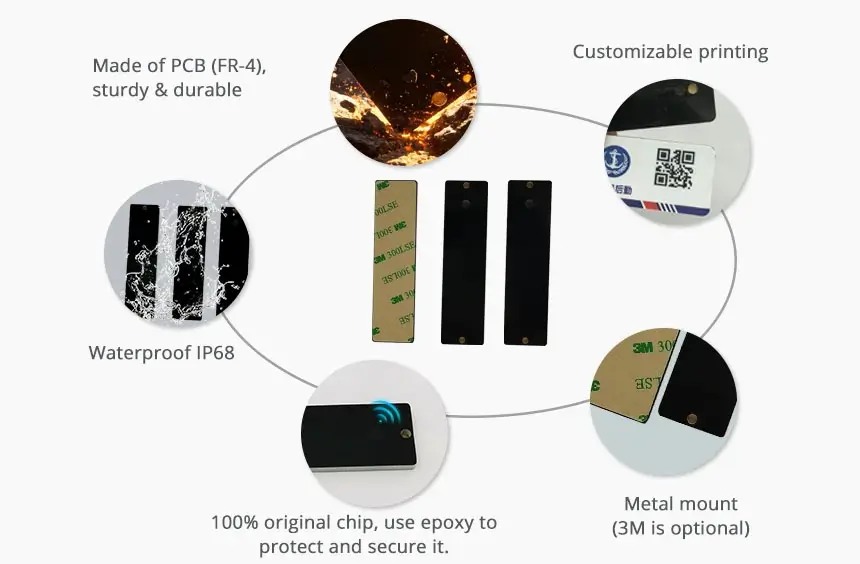

Made of PCB, sturdy and durable
Waterproof IP68
Complies with REACH, RoHS, and CE standards.
It can operate at temperatures between -40℃ and 100℃.
Chemical resistant.

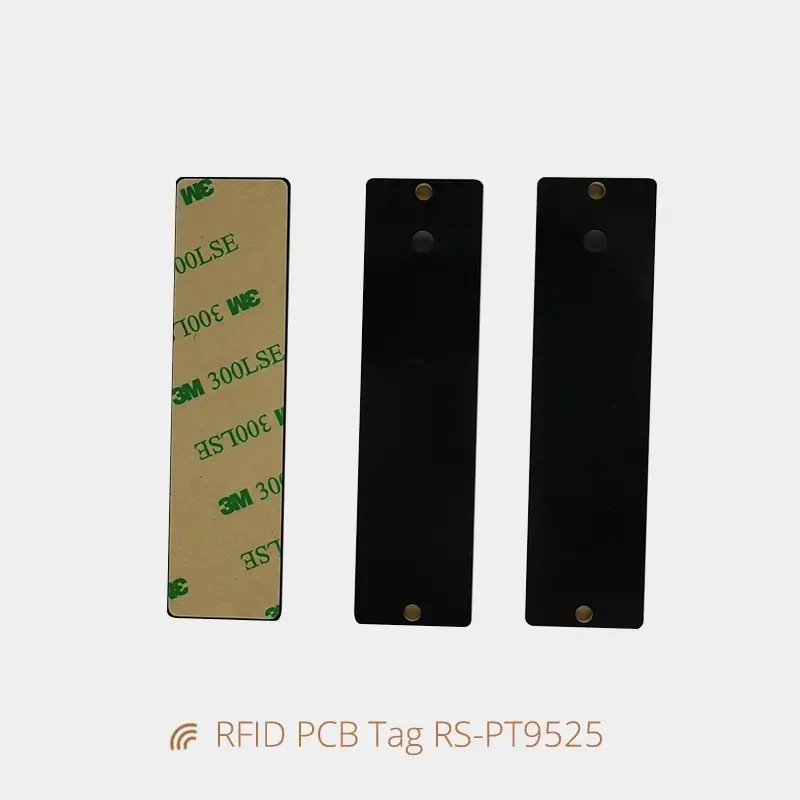

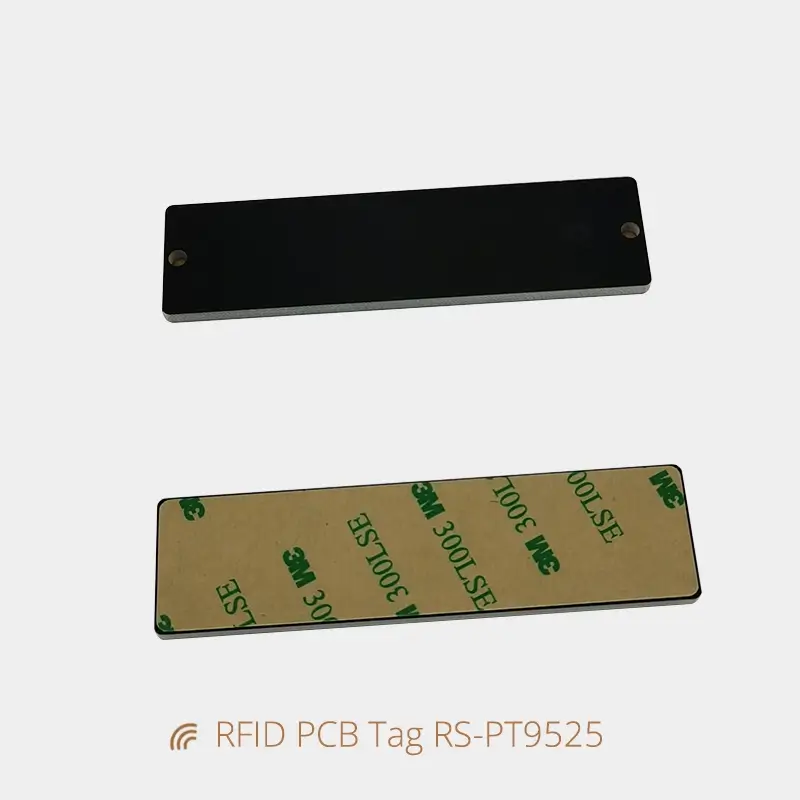

Size, color, printing, 3M adhesive backing are optional.
|
Model |
RS-PT9525 |
|
Material |
PCB |
|
Size |

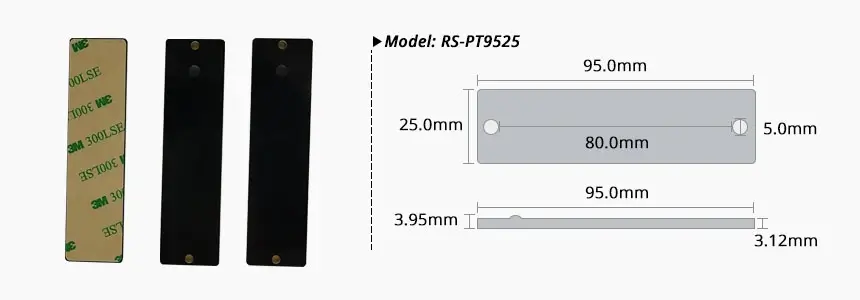

95x25mm, (Hole: D5.0mmx2) |
|
Thickness |
3.12mm without IC bump, 3.95mm with IC bump |
|
Frequency |
UHF 860~960MHz |
|
Chip |
Alien Higgs-3, Impinj Monza 4QT |
|
Reading distance |
Up to 9.5M approx. |
|
Options |
Adhesive Backing, programmable, UID-provided |
|
Application |
RFID pallet management, Smart warehouse management, etc.. |
|
MOQ |
500pcs |
|
Sample |
Free stock sample available for your testing. |
Contact info@rfidsilicone.com now!
Stock Testing samples ready for you.
Industrial-grade UHF PCB RFID anti-metal tags, built for durability and long-range performance. Request A Quote!
|
Product name |
Wholesale Industiral RFID UHF PCB Anti-Metal Tag |
|||||
|
Model |
RS-PT9525 |
|||||
|
Material |
PCB |
|||||
|
Size |
95×25×3.55mm |
|||||
|
Color |
Black (Red, Blue, Green, White) |
|||||
|
Frequency |
UHF 860~960MHz |
|||||
|
Operating Mode |
Passive |
|||||
|
Chips |
Alien Higgs-3, Impinj Monza 4QT |
|||||
|
Options |
Programmable, UID-provided |
|||||
|
Read distance |
Up to 5.8~9.5m approx. |
|||||
|
Operating temperature |
-40°С to +100°С |
|||||
|
Storage temperature |
-40°С to +150°С |
|||||
|
Mechanical strength |
＞20N |
|||||
|
Installation Method |
Adhesive, Screw |
|||||
|
Application |
RFID pallet management, Smart warehouse management, etc.. |
|||||
|
Certifications |
Reach Approved, RoHS Approved, CE Approved |
|||||
|
MOQ |
500pcs |
|||||
|
Packaging |
100pcs/bag, 10bags/case, 20 cases/carton |
|||||
|
Common Chip Types |
Protocol |
Capacity |
Anti-collision |
Function |
|
|
Available |
TK4100 |
/ |
64 bit |
No |
Read Only |
|
EM4200 |
/ |
128 bit |
No |
Read Only |
|
|
EM4305 |
/ |
512 bit |
No |
Read/Write |
|
|
T5577 |
/ |
330 bits |
No |
Read/Write |
|
|
Available |
NTAG® 213 |
ISO14443A |
180 byte |
No |
Read/Write |
|
NTAG® 215 |
ISO14443A |
540 byte |
No |
Read/Write |
|
|
NTAG® 216 |
ISO14443A |
924 byte |
No |
Read/Write |
|
|
MIFARE® Classic® 1K |
ISO14443A |
1 KB |
No |
Read/Write |
|
|
MIFARE® Classic® 4K |
ISO14443A |
4 KB |
No |
Read/Write |
|
|
MIFARE® Plus® S 1K |
ISO14443A |
2 KB/4 KB |
No |
Read/Write |
|
|
MIFARE Ultralight® EV1 |
ISO14443A |
48 byte |
No |
Read/Write |
|
|
MIFARE Ultralight® C |
ISO14443A |
144 byte |
No |
Read/Write |
|
|
ICODE® SLIX |
ISO15693 |
896 bit |
Yes |
Read/Write |
|
|
Available |
Alien H3 |
ISO18000-6C |
512 bit |
Yes |
Read/Write |
|
Other chips are also available. |
|||||
