Anti-metal · Industrial-grade PCB tag · Long read range · Durability · Waterproof IP68
Rugged RFID tags are industrial-grade anti-metal UHF PCB tags that can reliably read data when mounted on metal surfaces, making them ideal for tracking metal tools and small pallets. Made with FR-4 material, they comply with REACH, RoHS, and CE standards, and are robust, durable, and reusable.
Rugged RFID tags are anti-metal and feature an embedded Alien Higgs-3 UHF tag. Their compact size makes them suitable for applications such as tool and equipment tracking and small pallet tracking. Contact CXJ RFIDSilicone now to get the right RFID PCB tags for your needs.

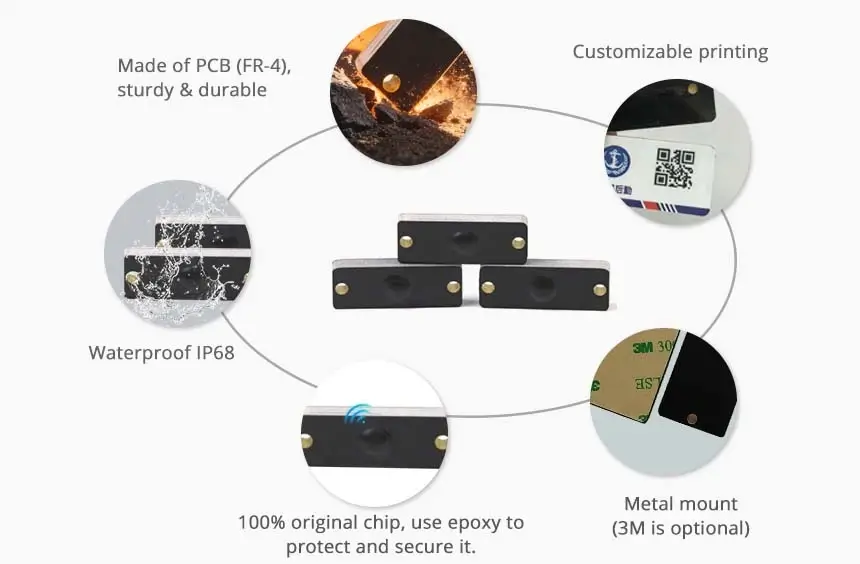

Made of PCB, sturdy and durable.
Waterproof IP68.
Complies with REACH, RoHS, and CE standards.
It can operate at temperatures between -40℃ and 100℃.
Chemical resistant.
Size, color, printing, 3M adhesive backing are optional.
|
Model |
RS-PT2208 |
|
Material |
FR4 (PCB) |
|
Size |
22x8mm, (Hole: D2.0mm) |
|
Thickness |
3mm without IC bump, 3.8mm with IC bump |
|
Frequency |
UHF 860~960MHz |
|
Chip |
Alien Higgs-3 |
|
Reading distance |
Up to 2.6~4.5m approx. (It depends on reader, tags and environment etc) |
|
Options |
Adhesive Backing, programmable, UID-provided |
|
Application |
Tool & Equipment Tracking, Small Pallet Tracking, etc.. |
|
MOQ |
500pcs |
|
Sample |
Free stock sample available for your testing. |
Contact info@rfidsilicone.com now!
Stock Testing samples ready for you.
Industrial-grade UHF PCB RFID anti-metal tags, built for durability and long-range performance. Request A Quote!
|
Product name |
UHF PCB Rugged RFID Tags for Metal Surfaces Supplier |
|||||
|
Model |
RS-PT2208 |
|||||
|
Material |
FR4 (PCB) |
|||||
|

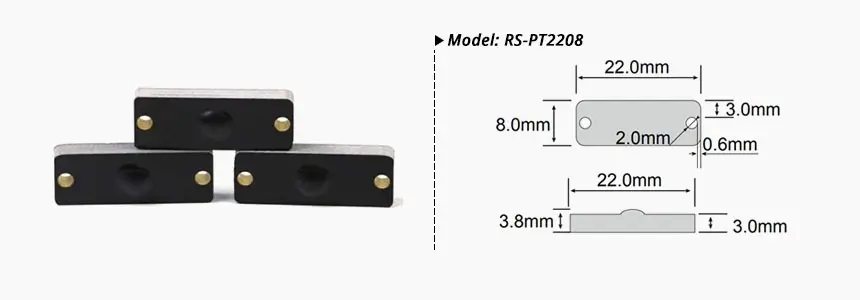

Size |
22×8×3.5mm |
|||||
|
Color |
Black (Red, Blue, Green, White) |
|||||
|
Frequency |
UHF 860~960MHz |
|||||
|
Operating Mode |
Passive |
|||||
|
Chips |
Alien Higgs-3 |
|||||
|
Options |
Programmable, UID-provided |
|||||
|
Read distance |
Up to 2.6~4.5m approx. (It depends on reader, tags and environment etc) |
|||||
|
Operating temperature |
-40°С to +100°С |
|||||
|
Storage temperature |
-40°С to +150°С |
|||||
|
Mechanical strength |
＞20N |
|||||
|
Installation Method |
Adhesive, Screw |
|||||
|
Application |
Tool & Equipment Tracking, Small Pallet Tracking, etc.. |
|||||
|
Certifications |
Reach Approved, RoHS Approved, CE Approved |
|||||
|
MOQ |
500pcs |
|||||
|
Packaging |
100pcs/bag, 10bags/case, 20 cases/carton |
|||||
|
Common Chip Types |
Protocol |
Capacity |
Anti-collision |
Function |
|
|
Available |
TK4100 |
/ |
64 bit |
No |
Read Only |
|
EM4200 |
/ |
128 bit |
No |
Read Only |
|
|
EM4305 |
/ |
512 bit |
No |
Read/Write |
|
|
T5577 |
/ |
330 bits |
No |
Read/Write |
|
|
Available |
NTAG® 213 |
ISO14443A |
180 byte |
No |
Read/Write |
|
NTAG® 215 |
ISO14443A |
540 byte |
No |
Read/Write |
|
|
NTAG® 216 |
ISO14443A |
924 byte |
No |
Read/Write |
|
|
MIFARE® Classic® 1K |
ISO14443A |
1 KB |
No |
Read/Write |
|
|
MIFARE® Classic® 4K |
ISO14443A |
4 KB |
No |
Read/Write |
|
|
MIFARE® Plus® S 1K |
ISO14443A |
2 KB/4 KB |
No |
Read/Write |
|
|
MIFARE Ultralight® EV1 |
ISO14443A |
48 byte |
No |
Read/Write |
|
|
MIFARE Ultralight® C |
ISO14443A |
144 byte |
No |
Read/Write |
|
|
ICODE® SLIX |
ISO15693 |
896 bit |
Yes |
Read/Write |
|
|
Available |
Alien H3 |
ISO18000-6C |
512 bit |
Yes |
Read/Write |
|
Other chips are also available. |
|||||
