Anti-metal · Industrial-grade PCB tag · Long read range · Durability · Waterproof IP68
CXJ RFID tags for metal surfaces is made of FR-4 (PCB), is durable. Due to its anti-metal properties, the UHF PCB RFID tag is widely uses, such as tracking of metal tool & euqipment. This RFID tag complies with REACH, RoHS, and CE standards, ensuring compliance and reliability for global use.
RFID tags for metal surfaces are used in scenarios such as warehouse management, saving time and improving efficiency. CXJ RFID Silicone RFID PCB tags are available in various sizes, allowing you to choose the most suitable one based on your application and requirements.

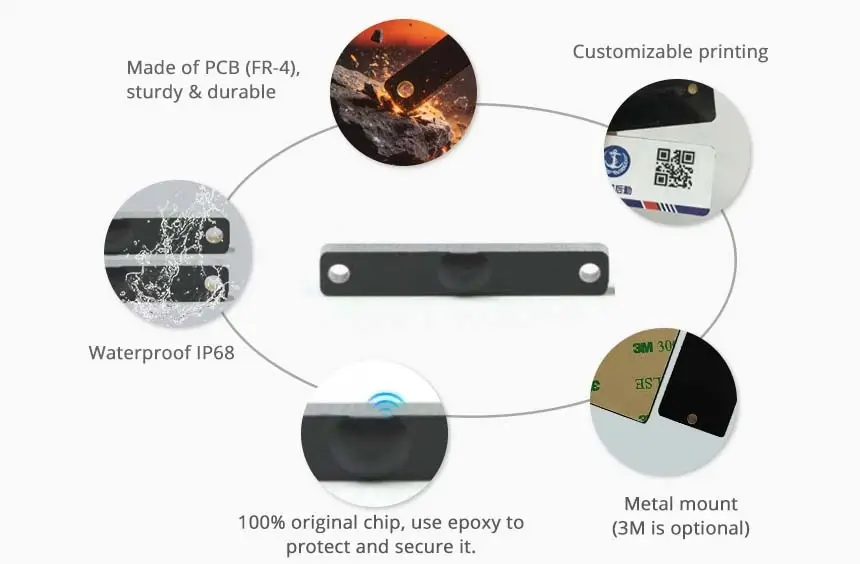

Made of PCB, sturdy and durable.
Waterproof IP68.
Complies with REACH, RoHS, and CE standards.
It can operate at temperatures between -40℃ and 100℃.
Chemical resistant.
Size, color, printing, 3M adhesive backing are optional.
|
Model |
RS-PT3005 |
|
Material |
FR4 (PCB) |
|

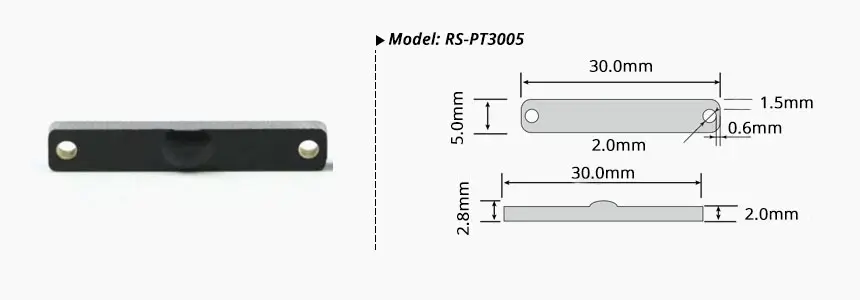

Size |
30x5mm, (Hole: D2.0mm) |
|
Thickness |
2.0mm without IC bump, 2.8mm with IC bump |
|
Frequency |
UHF 860~960MHz |
|
Chip |
Alien Higgs-3 |
|
Reading distance |
Up to 2.1~3.1m approx. (It depends on reader, tags and environment etc) |
|
Options |
Adhesive Backing, programmable, UID-provided |
|
Application |
Smart Warehouse Management, Metal Asset Management, etc.. |
|
MOQ |
500pcs |
|
Sample |
Free stock sample available for your testing. |
Contact info@rfidsilicone.com now!
Stock Testing samples ready for you.
Industrial-grade UHF PCB RFID anti-metal tags, built for durability and long-range performance. Request A Quote!
|
Product name |
Metal-Mount RFID Tags for Metal Surfaces Supplier |
|||||
|
Model |
RS-PT3005 |
|||||
|
Material |
FR4 (PCB) |
|||||
|
Size |
30×5×2.8mm |
|||||
|
Color |
Black (Red, Blue, Green, White) |
|||||
|
Frequency |
UHF 860~960MHz |
|||||
|
Operating Mode |
Passive |
|||||
|
Chips |
Alien Higgs-3 |
|||||
|
Options |
Programmable, UID-provided |
|||||
|
Read distance |
Up to 2.1~3.1m approx. (It depends on reader, tags and environment etc) |
|||||
|
Operating temperature |
-40°С to +100°С |
|||||
|
Storage temperature |
-40°С to +150°С |
|||||
|
Mechanical strength |
＞20N |
|||||
|
Installation Method |
Adhesive, Screw |
|||||
|
Application |
Smart Warehouse Management, Metal Asset Management, etc.. |
|||||
|
Certifications |
Reach Approved, RoHS Approved, CE Approved |
|||||
|
MOQ |
500pcs |
|||||
|
Packaging |
100pcs/bag, 10bags/case, 20 cases/carton |
|||||
|
Common Chip Types |
Protocol |
Capacity |
Anti-collision |
Function |
|
|
Available |
TK4100 |
/ |
64 bit |
No |
Read Only |
|
EM4200 |
/ |
128 bit |
No |
Read Only |
|
|
EM4305 |
/ |
512 bit |
No |
Read/Write |
|
|
T5577 |
/ |
330 bits |
No |
Read/Write |
|
|
Available |
NTAG® 213 |
ISO14443A |
180 byte |
No |
Read/Write |
|
NTAG® 215 |
ISO14443A |
540 byte |
No |
Read/Write |
|
|
NTAG® 216 |
ISO14443A |
924 byte |
No |
Read/Write |
|
|
MIFARE® Classic® 1K |
ISO14443A |
1 KB |
No |
Read/Write |
|
|
MIFARE® Classic® 4K |
ISO14443A |
4 KB |
No |
Read/Write |
|
|
MIFARE® Plus® S 1K |
ISO14443A |
2 KB/4 KB |
No |
Read/Write |
|
|
MIFARE Ultralight® EV1 |
ISO14443A |
48 byte |
No |
Read/Write |
|
|
MIFARE Ultralight® C |
ISO14443A |
144 byte |
No |
Read/Write |
|
|
ICODE® SLIX |
ISO15693 |
896 bit |
Yes |
Read/Write |
|
|
Available |
Alien H3 |
ISO18000-6C |
512 bit |
Yes |
Read/Write |
|
Other chips are also available. |
|||||
