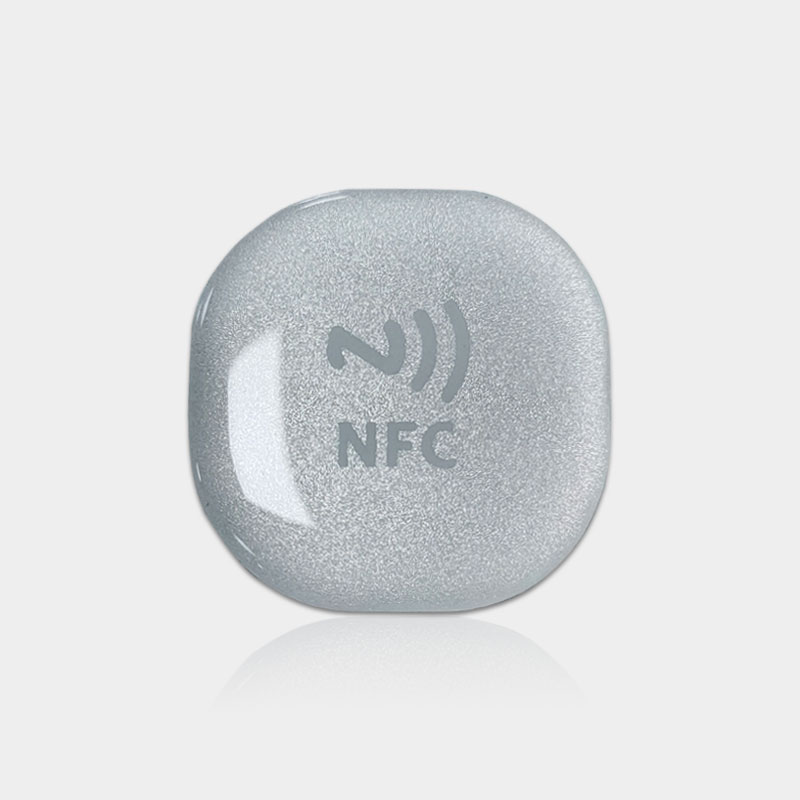

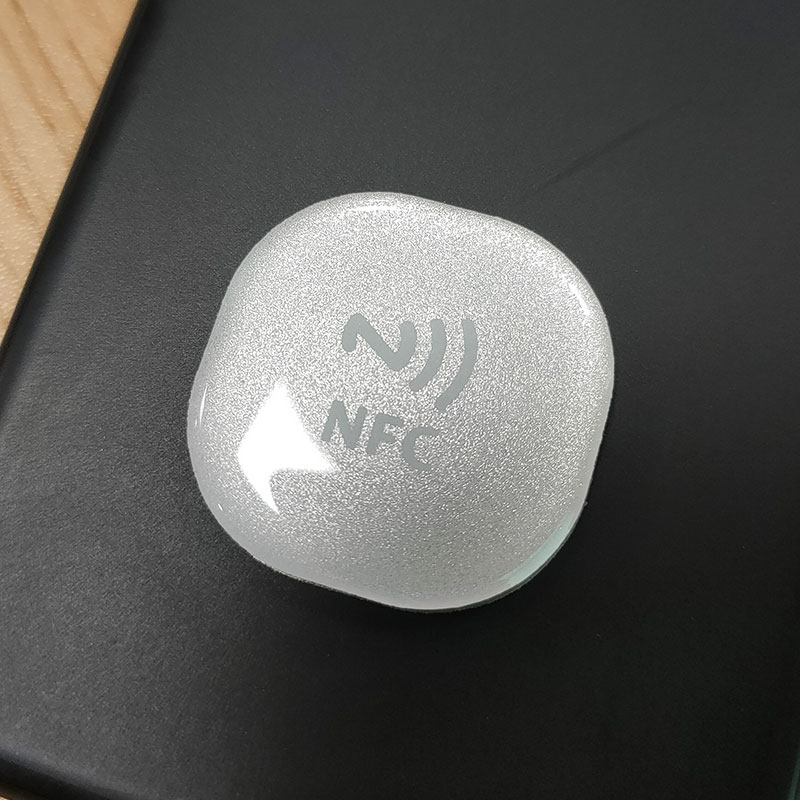

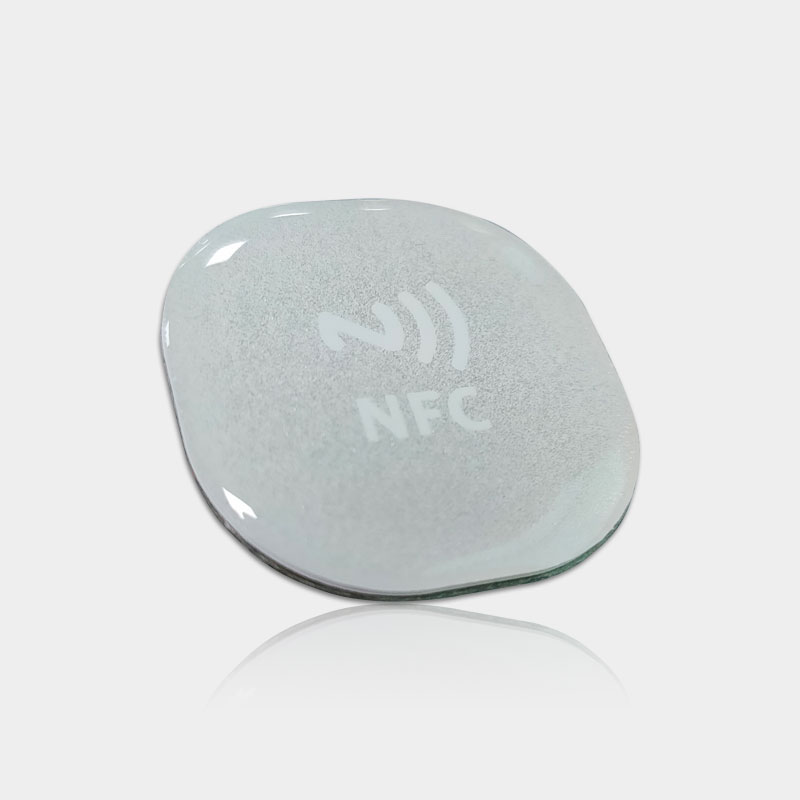

NFC Epoxy Tags are made of PVC/PET and epoxy material, which is durable high definition & no easy to be damaged or broken.

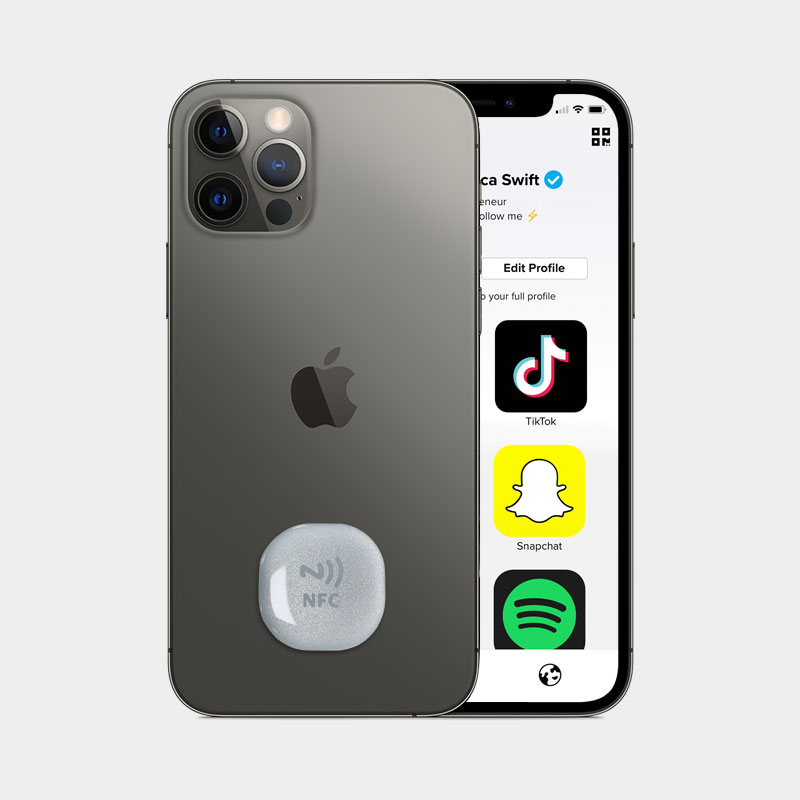

Anti-metal 3M NFC tags are made of PVC, epoxy, adhesive & anti-metal material, which is durable, high definition and no easy to be damaged or broken. With anti-metal material, it can be safe to stick on most surfaces, still good working when on metal or water environment (Waterproof). Social media NFC Epoxy Tags almost used on metal phone/phone case, without an anti-metal layer that are on metal surfaces are unreadable.
CXJ NFC tags mainly include NFC cards, NFC tokens, NFC posters, NFC keyfobs, NFC social tags, NFC wristbands, NFC dry/wet Inlays, NFC anti-metal tags & NFC fridge magnets. These NFC tags are are widely used for E-Payment, E-ticket, Identification, Access Control( Entrance Access), Smart advertisement, Production authentication, etc.
1.The above patterns and colors are available for customers to choose, LOGO printing is customized, and customers' artistic designs are also acceptable.
2.The commonly used sizes of social media 3M NFC tags are 30*30mm, 28*28mm, or customized according to client needs.
3.The thickness of the 3M NFC tags are 2.78mm or customized. According to the user's experience, it will not affect the accuracy of the reading. The thinner the better.
|
Model |
RS-NET002 |
|
Material |
Epoxy+PET/PVC+Anti-metal layer+adhesive |
|
Size |
30×30×0.65mm(Square with rounded corners) or customized. |
|
Frequency |
HF 13.56MHz |
|
Chip |
NTAG213/NTAG215/NTAG216(optional) |
|
Read distance |
0-10CM(It depends on reader, tags and environment etc.) |
|
Data Retention |
10 years |
|
Operating temperature |
-20℃~ 85℃ |
|
Waterproof grade |
IP67 |
|
Application |
1. Visit a website URL |
Smaller NFC epoxy Tags with Elastic rope
Square & rectangular shiny NFC epoxy tags
Double-sided Epoxy NFC key tags
NFC Metal Business cards
PVC NFC cards & NFC wood cards
Waterproof IP68 NFC Silicone Wristbands
Contact [email protected] now!
Stock Testing samples ready for you.
Share your social media, business or music with one NFC tag. LOGO, pattern, chip, size can be customized. Free samples available!
|
Product name |
Custom 3D Crystal Anti Metal NFC Sticker Self Adhesive with Logo Printing |
|
Model |
RS-NET002 |
|
Material |
Epoxy, PET/PVC, Anti-metal layer, adhesive |
|
Size |
30×30×0.65mm(Square with rounded corners), Round-50mm/40mm/30mm/25mm/20mm in diameter or customized. |
|
Frequency |
HF 13.56MHz |
|
Chip |
NFC: NTAG213/NTAG215/NTAG216, etc. HF chip: MIFARE Classic® 1K, MIFARE Ultralight®, MIFARE Ultralight® C, MIFARE® DESFire® 2K, MIFARE Plus® 2K, etc. |
|
Protocol |
ISO 14443A |
|
Read distance |
0-10M(It depends on reader, tags and environment etc.) |
|
Operating Mode |
Passive |
|
Work life |
10 years |
|
Working temperature |
200℃ bearable |
|
Data Retention |
10 years |
|
Crafts |
Laser printing Codes, QR Code, Bar Code, Punching Hole, Epoxy, Anti-metal, Adhesive Backed, Serial Number, Convex code; |
|
Application |
Widely used as key fobs, pets id collars tags and access control, payment system, Identification etc. |
|
MOQ |
500pcs |
|
Sample availability |
Free samples are available upon request. |
|
Common Chip Types |
Protocol |
Capacity |
Anti-collision |
Function |
|
|
Available 125KHz Chip |
TK4100 |
/ |
64 bit |
No |
Read Only |
|
EM4200 |
/ |
128 bit |
No |
Read Only |
|
|
EM4305 |
/ |
512 bit |
No |
Read/Write |
|
|
T5577 |
/ |
330 bits |
No |
Read/Write |
|
|
Available 13.56MHz Chip |
NTAG® 213 |
ISO14443A |
180 byte |
No |
Read/Write |
|
NTAG® 215 |
ISO14443A |
540 byte |
No |
Read/Write |
|
|
NTAG® 216 |
ISO14443A |
924 byte |
No |
Read/Write |
|
|
MIFARE® Classic® 1K |
ISO14443A |
1 KB |
No |
Read/Write |
|
|
MIFARE® Classic® 4K |
ISO14443A |
4 KB |
No |
Read/Write |
|
|
MIFARE® Plus® S 1K |
ISO14443A |
2 KB/4 KB |
No |
Read/Write |
|
|
MIFARE Ultralight® EV1 |
ISO14443A |
48 byte |
No |
Read/Write |
|
|
MIFARE Ultralight® C |
ISO14443A |
144 byte |
No |
Read/Write |
|
|
ICODE® SLIX |
ISO15693 |
896 bit |
Yes |
Read/Write |
|
|
Available 860-960MHz Chip |
Alien H3 |
ISO18000-6C |
512 bit |
Yes |
Read/Write |
|
Other chips are also available. |
|||||
